Circular Vibrating Screen

Product Description

Product Overview

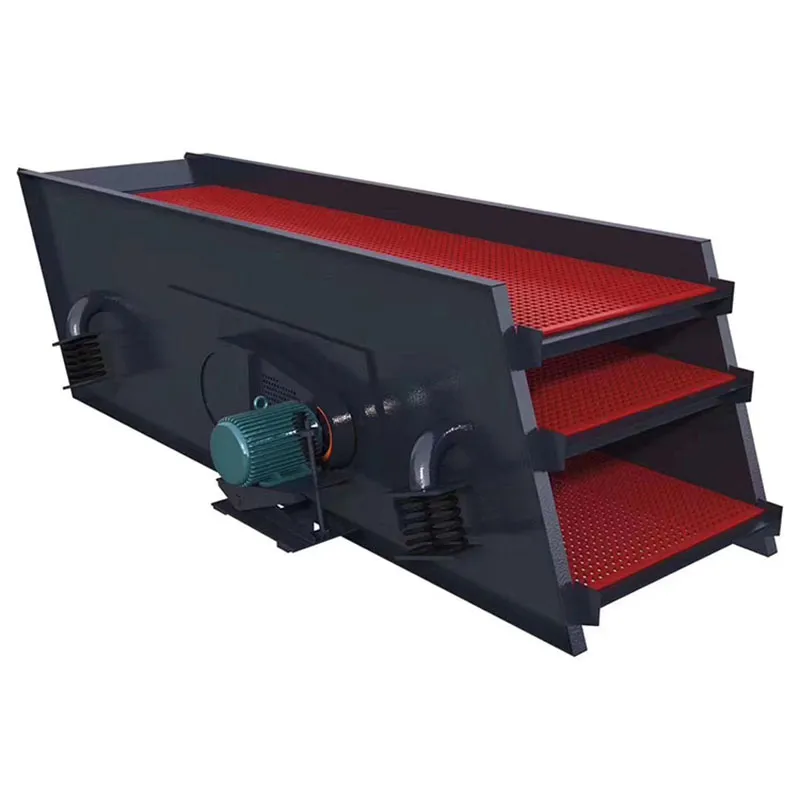

The YK Series Circular Vibrating Screen is a multi-deck screening machine. The motion trajectory of the screen box is circular. It is installed at an angle (usually 15-20 degrees). Material is fed onto the top deck; smaller particles fall through the mesh, while larger ones move forward to the discharge end. It is the final step that determines the commercial value of your product.

Why Choose a Used YK Screen?

• Simple Mechanics: A vibrating screen is essentially a steel box on springs. There is very little that can “break” beyond repair. Buying used saves you 50% of the steel cost.
• Easy Customization: You can easily change the screen mesh (steel wire, polyurethane, or punched plate) to produce whatever size your local market demands.
• Proven Durability: The YK series uses tire-coupling connections (flexible connection) between the motor and exciter, which protects the motor from vibration damage.

Key Technical Features

• Block Eccentric Exciter: Uses external eccentric blocks to adjust the vibration amplitude. It is more reliable and easier to maintain than internal shaft-eccentric types.
• Cold-Riveted Connection: The side plates and cross beams are connected by high-strength rivets (Huck Bolts), NOT welding. This eliminates internal stress and prevents the frame from cracking under years of vibration.
• High-Strength Springs: Heavy-duty steel springs absorb the vibration, minimizing the dynamic load transferred to the concrete foundation.
• Large Clearance Bearings: Uses specialized vibration-resistant bearings (like SKF/FAG/ZWZ) with larger internal clearance to handle the heat and speed.

Applications

• Aggregate Grading: Separating road base, concrete stone, and asphalt chips.
• Scalping: Removing dirt/fines before the primary crusher (if used as a scalper).
• Coal Preparation: Sizing raw coal.

Quality Assurance & Refurbishment Process Refurbishing a screen is all about the Exciter and Frame.

• Exciter Rebuild: We disassemble the vibration unit, clean the oil bath, and replace the bearings with new Vibration-Class bearings. We check the temperature after running for 4 hours.
• Frame Inspection: We check the side plates for any stress cracks. If found, we do not weld them (which fails again); we replace the plate or use patch plates with rivets.
• Spring Check: We ensure all support springs are of equal height to ensure the screen runs level.

Common Customer Questions (FAQ)

• Q: Does it come with the screen mesh?
  • A: Yes, we usually install brand new steel wire mesh tailored to your requested sizes (e.g., 20mm, 40mm) before shipping.
• Q: How many decks does it have?
  • A: Common configurations are 2-Deck (3 products), 3-Deck (4 products), or 4-Deck (5 products). We stock all types.
• Q: Can I adjust the vibration strength?
  • A: Yes, by adding or removing counterweights on the eccentric blocks, you can adjust the amplitude to suit different materials.
• Q: Is it suitable for wet screening?
  • A: Yes, simple water spray nozzles can be added above the decks for washing stone while screening.

Product Parameters

*Technical data is for reference only.
